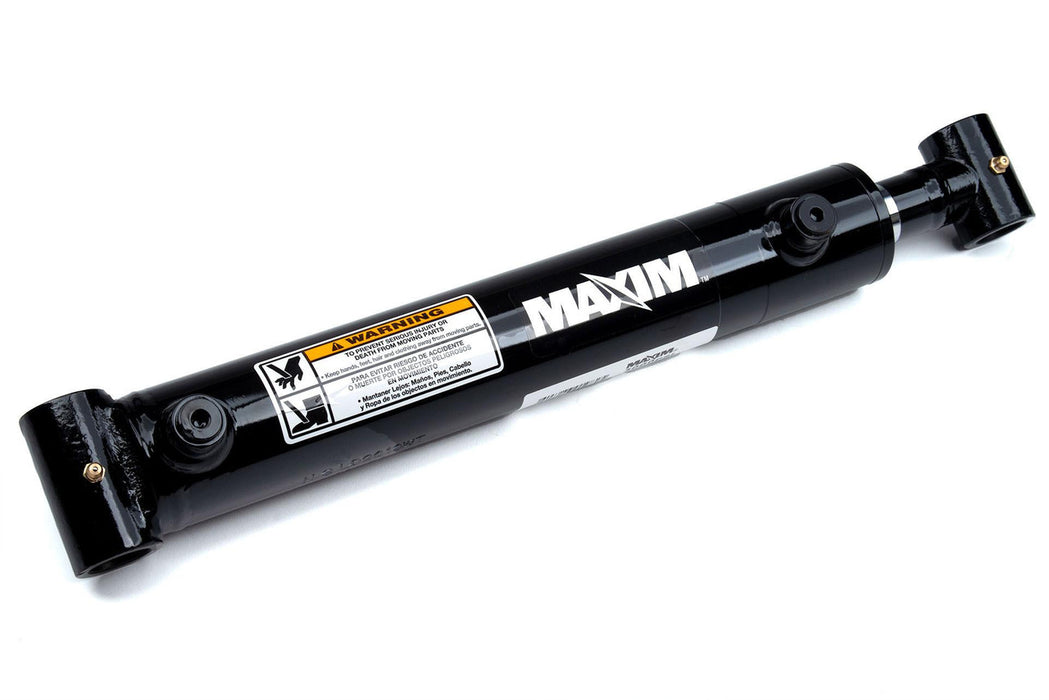

1.5” X 8” Welded Cylinder
1.5” X 8” Welded Cylinder
Our 1.5” X 8” Welded Cylinder is the replacement cylinder for all 60” Granite Grapples, 60” Summit Grapples, and any other grapple that has a 1.5” X 8” cylinder.
Specifications
Weight: 9.00 LBS
Bore: 1.5"
Stroke: 8"
PSI: 3000
Pin Hole Diameter: .78” (Fits 3/4” Pin)
Retracted dimension of center to center of pin holes: 16 in
Extended dimension of center to center of pin holes: 24 in
Rod Diameter: 1”
Fitting Size: SAE 4
Column Load: 5300 lbs
