Side Flow Bucket - Light Material

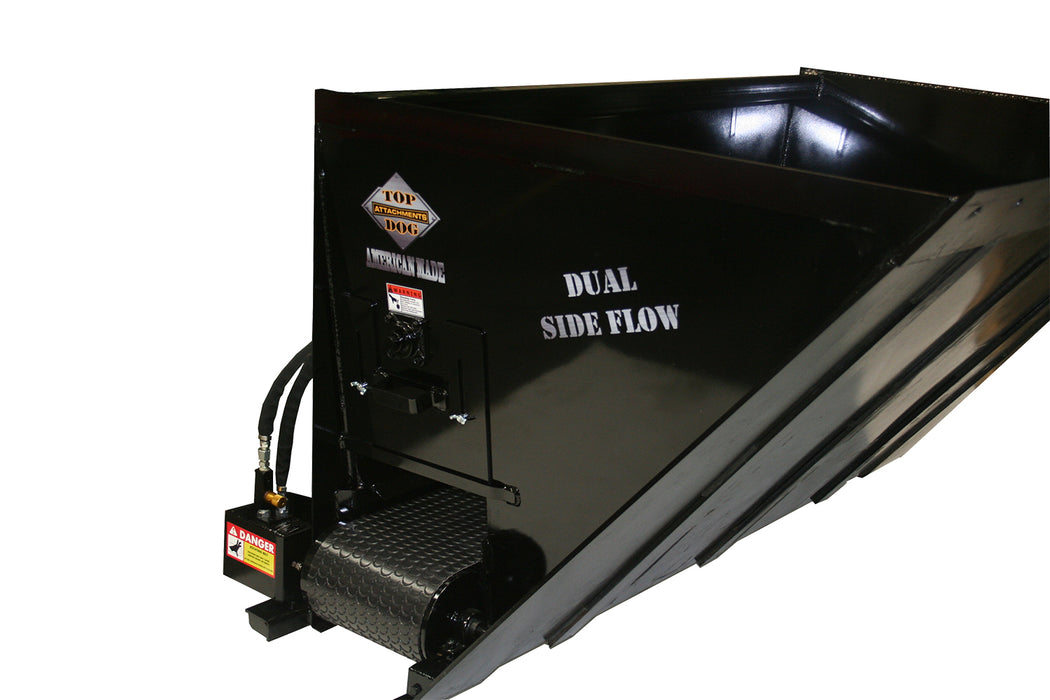

Top Dog Dual Side Flow Bucket - Light Material
Our Dual Side Flow Light Material Bucket is a unique attachment designed to scoop up material and discharge it through two side openings. This feature allows for efficient handling and spreading of light materials such as sawdust, mulch, and silage.
Key Features
-
Dual-Side Discharge: This bucket lets the material be scooped up and moved out through two side discharge openings.
-
Convertible Design: The operator can convert this attachment into a bucket by rotating and lowering the attachment.
-
Adjustable Belt Speeds: Comes with adjustable dual control valves that allow you to control the belt speed and direction.
-
Beater Bar: Includes a beater bar for the Light Material versions that helps prevent material from piling up and clogging.
- American Made: Proudly made in the USA.
Specifications
- Overall Width: 97”
- Overall Height: 44″
- Overall Depth: 52″
- Struck Capacity: 46 cu. ft
- Heaped Capacity: 55.2 cu. ft
- Belt Motors: 4.9 cu. in – Dual Motors
- Beater Bar Motor: 18.6 cu.in
- Flow GPM: 15-20 GPM
- Belt Speed: Adjustable (Dual Control Valves)
- Belt: 5/16″ thick, 2-Ply Asphalt Belt or Chevron V Style Belt (we will be in contact before shipping to know see which style you would like)
- Hydraulic Couplers: Flat Face
- Hydraulic Hoses: 1/2″ PSI Min/Max: 2,500
- Bearings: 1″ Pillow Block (2)
- Cutting Edge: 5/8″ x 6
- Mounting Plate: 5/16″
- Pivot points: Greece Zerks
- Tensioners: Manually Adjustable (4 locations)
- Bucket thickness: 3/16″
- Wear Bars: 3/8″
- Weight: 1350 LBS
Lead Time:
Please allow for 4 to 6 weeks lead time for all Dual Side Flows. If you have any questions please give us a call at 800-445-8244.
