Heavy Duty Side Flow Bucket Skid Steer Attachment

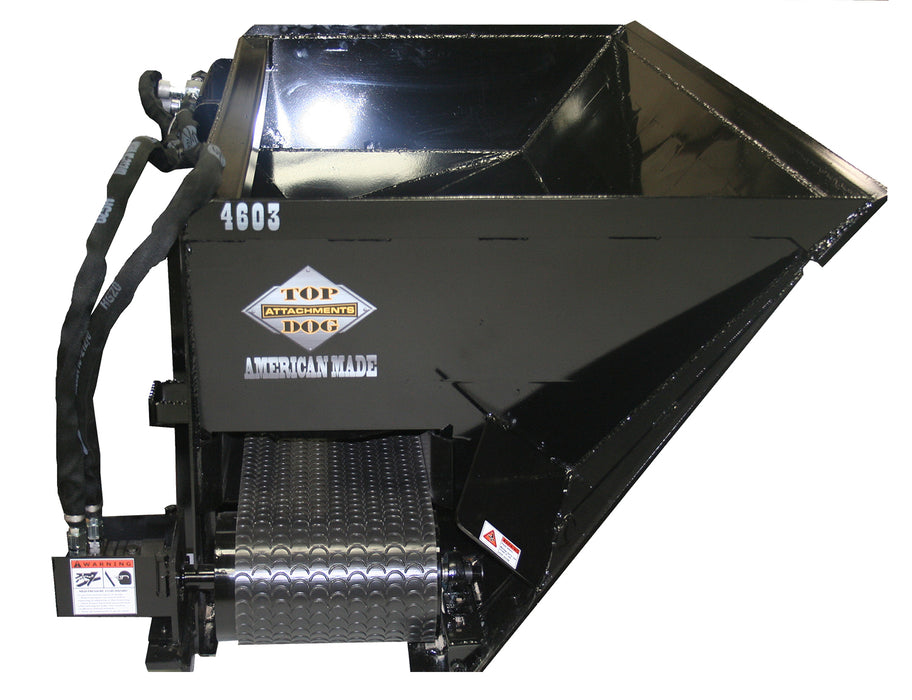

Top Dog Attachments Dual Side Flow Bucket – Heavy Material Skid Steer Attachment

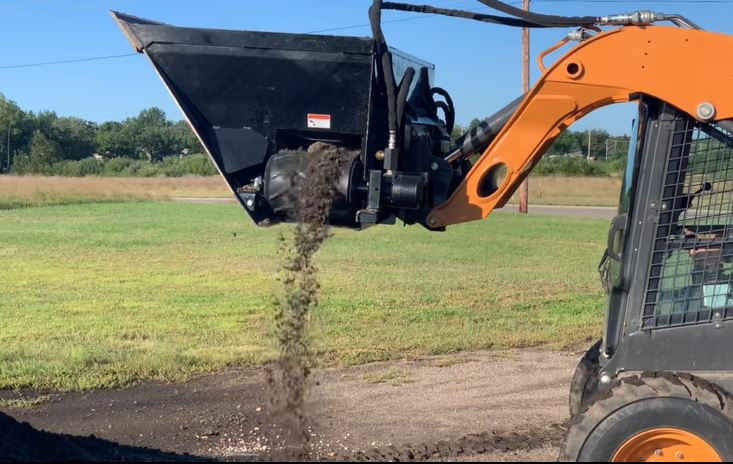

Efficient Material Spreading with Dual Side Discharge
The Top Dog Attachments Dual Side Flow Bucket is a high-performance skid steer attachment designed for fast, controlled handling of heavy materials like rock, limestone, asphalt, sand, and gravel. Built for contractors, road crews, and property maintenance professionals, this innovative bucket allows you to scoop, transport, and evenly discharge material through dual side openings—saving time, labor, and multiple passes on the job.
Whether you're spreading gravel along a driveway or laying asphalt along edges, this side flow bucket delivers precision and efficiency you won’t get with a standard bucket.
🔥 Key Features
-
Dual-Side Discharge System
Easily spread material from both sides for faster, more even coverage. -

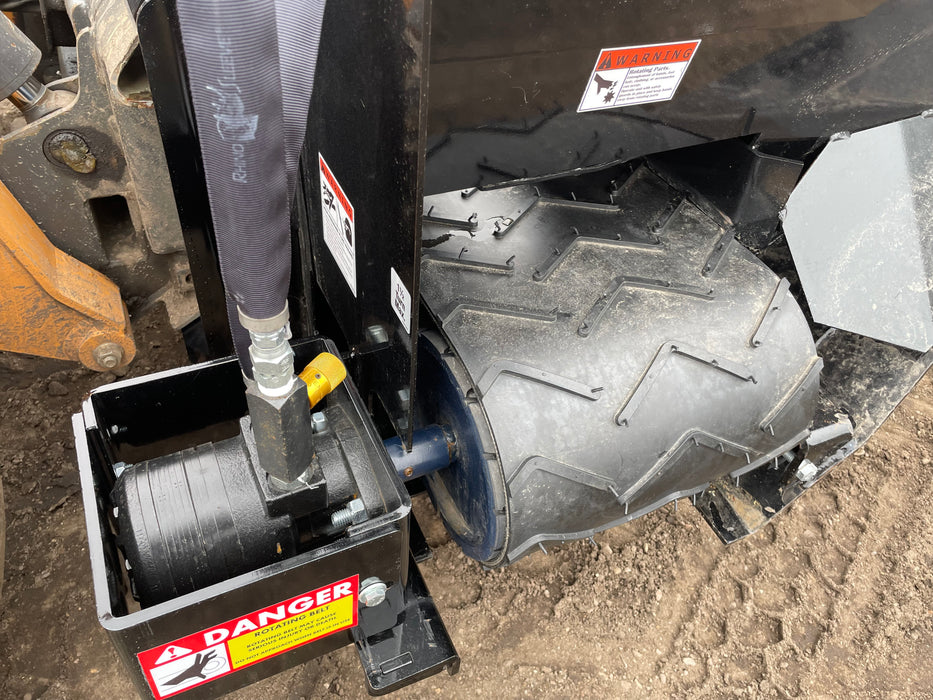

Independent Dual Motor Belt Control
Each motor drives the belt in a single direction, reducing wear and helping extend motor life. Dual control valves allow you to independently adjust speed in each direction, so you can fine-tune material flow and even run one side faster than the other for precise spreading. -
Heavy-Duty Construction
Built with high-quality steel and reinforced wear components for long-lasting durability. -
Versatile Material Handling
Ideal for rock, limestone, asphalt, sand, gravel, and other dense materials. -
Made in the USA 🇺🇸
Designed and manufactured for reliable performance in tough job site conditions.
| Specifications | 72” | 84” |
|---|---|---|
| Overall Width | 82" | 94” |
| Overall Height | 30” | 30” |
| Overall Depth | 42” | 42” |
| Struck Capacity | 17.5 cu. ft | 20.41 c.u. ft |
| Heaped Capacity | 21 cu. ft | 24.5 cu. ft |
| Weight | 1000 lbs | 1166 lbs |
| Flow Rate | 15–20 GPM | 15–20 GPM |
| Belt Motors | 4.9 cu. in (Dual Motors) | 4.9 cu. in (Dual Motors) |
| Belt Type | 5/16″ 2-Ply Asphalt or Chevron V Style | 5/16″ 2-Ply Asphalt or Chevron V Style |
| Belt Speed | Adjustable (Dual Control Valves) | Adjustable (Dual Control Valves) |
| Hydraulic Couplers | Flat Face | Flat Face |
| Hydraulic Hoses | 1/2″ (2,500 PSI Min/Max) | 1/2″ (2,500 PSI Min/Max) |
| Cutting Edge | 3/4″ x 6″ | 3/4″ x 6″ |
| Bucket Thickness | 3/16″ | 3/16″ |
| Wear Bars | 3/8″ | 3/8″ |
| Bearings | 1″ Pillow Block (2) | 1″ Pillow Block (2) |
| Mounting Plate | 5/16″ | 5/16″ |
| Pivot Points | Grease Zerks | Grease Zerks |
| Tensioners | Manually Adjustable (4 Locations) | Manually Adjustable (4 Locations) |
FAQS
What machines is this compatible with?
This dual side flow bucket is designed for most skid steers and compatible tractors with the correct mounting plate and hydraulic flow (15–20 GPM).
What materials can it handle?
It’s built for heavy materials like gravel, rock, limestone, asphalt, and sand.
Can I choose the belt type?
Yes — we will contact you before shipping to confirm whether you prefer the asphalt belt or chevron V style belt.
What is the lead time?
Lead time is typically 4 to 6 weeks if the unit is not in stock.
Ready to upgrade your material handling?
Order your Dual Side Flow Bucket today or call 800-445-8244 to speak with our team and get the right setup for your machine.
