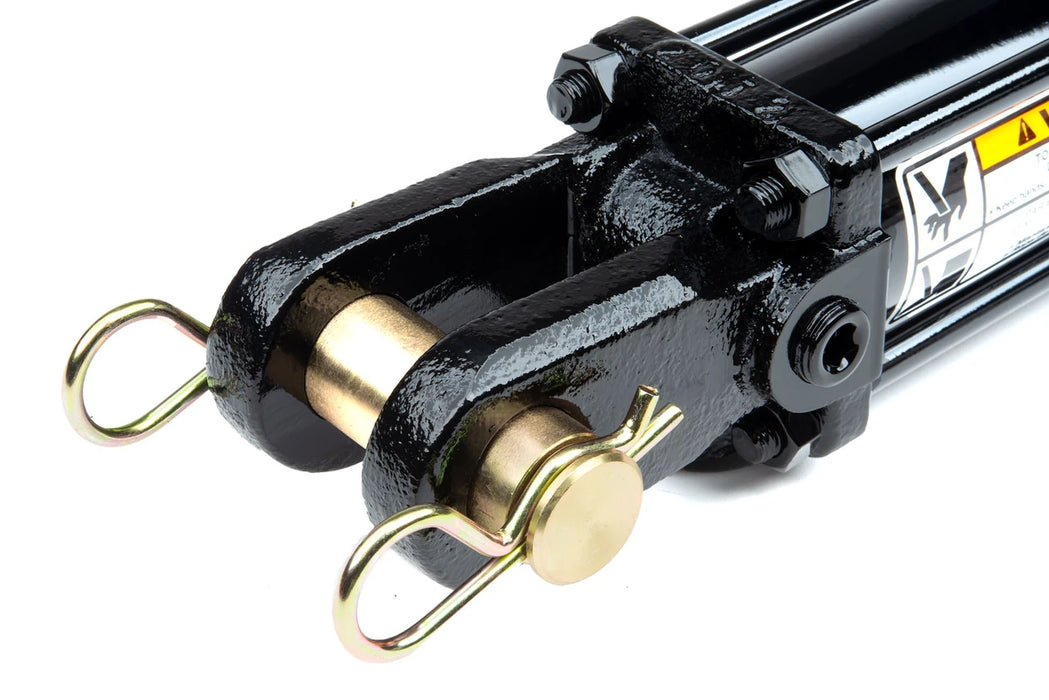

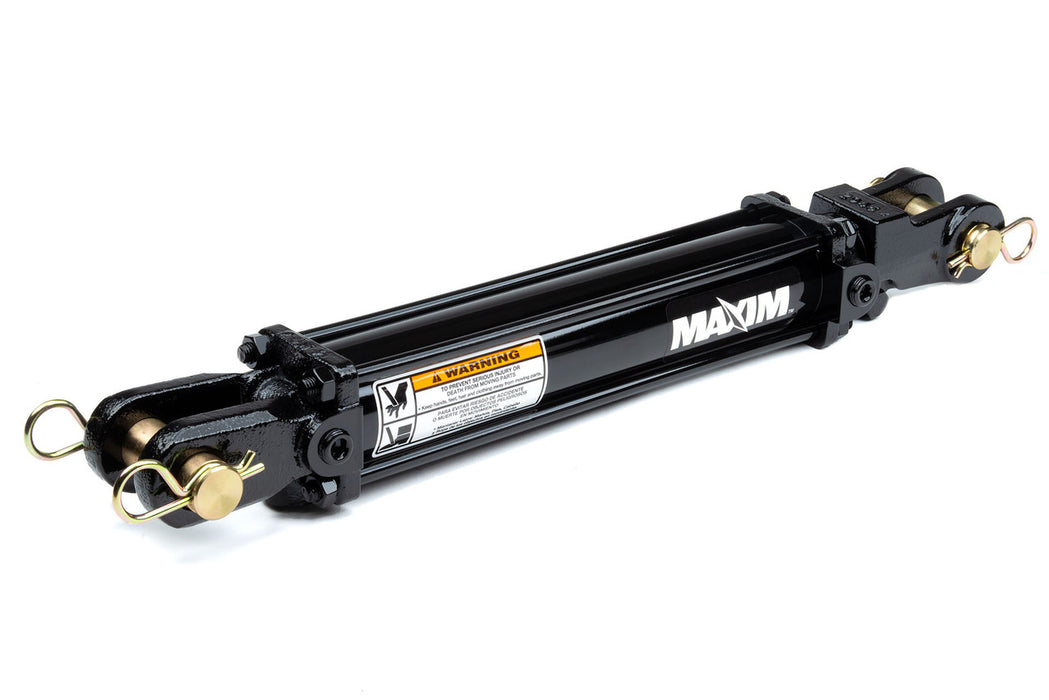

Maxim 2" Bore x 8" Stroke Tie-Rod Hydraulic Cylinder – 2500 PSI
Maxim 2" Bore x 8" Stroke Tie-Rod Hydraulic Cylinder – 2500 PSI
The Maxim 2" Bore x 8" Stroke Tie-Rod Hydraulic Cylinder is built for dependable performance in agricultural, industrial, and equipment applications. Rated for 2500 PSI, this double-acting hydraulic cylinder delivers reliable hydraulic power while maintaining a serviceable tie-rod design.
With a 2-inch bore, 8-inch stroke, and 1.125-inch rod diameter, this cylinder is a great choice for replacing worn or damaged hydraulic cylinders on compatible equipment, machinery, attachments, and agricultural applications.
Key Features
-
2" bore x 8" stroke
-
2500 PSI working pressure
-
1.125" rod diameter
-
Double-acting hydraulic cylinder
-
Tie-rod construction for easier maintenance and repair
-
Clevis mounting for straightforward installation
-
3/8" NPT hydraulic ports
-
Precision-honed steel tube
-
Designed for agricultural and industrial applications
-
Built for dependable performance in light- and medium-duty hydraulic systems
Specifications
| Specification | Details |
|---|---|
| Brand | Maxim |
| Bore | 2" |
| Stroke | 8" |
| Rod Diameter | 1.125" |
| Maximum Pressure | 2500 PSI |
| Pin Diameter | 1" |
| Retracted Length | 18.25" |
| Extended Length | 26.25" |
| Port Size | 3/8" NPT |
| Column Load | 7,850 lbs. |
| Mounting Style | Clevis |
| Weight | 17 lbs. |
| Manufacturer Part Number | 218299 |
Common Applications
This 2 x 8 hydraulic cylinder is suitable for a variety of attachments, compatible with our Pallet Fork Grapple, Snow Blades, Brush Bucket Grapples, and more!
Need a Replacement Hydraulic Cylinder?
Before ordering, compare your existing cylinder's bore, stroke, retracted length, extended length, pin diameter, port size, and mounting style to ensure proper fitment.
